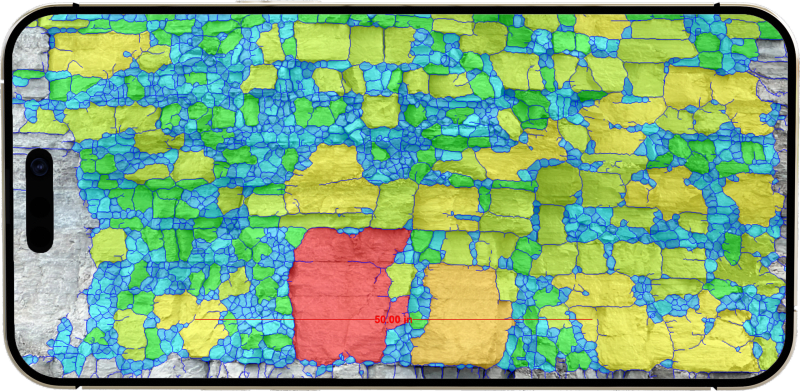

How In-Situ Joints Affect Explosive Energy Distribution During Blasting Rock masses in mining and quarrying environments are rarely intact; they are intersected by natural joints, fractures, and bedding planes. These in-situ discontinuities significantly influence how explosive energy is transmitted and utilized during blasting. When properly understood and incorporated into blast design, they can aid fragmentation. However, when ignored, they may lead to inefficient energy usage and poor blast outcomes (See attached Video). Impact of In-Situ Joints on Energy Distribution Explosives generate high-pressure gases intended to create new fractures and displace rock. In a massive, competent rock with minimal joints, most of this energy contributes directly to breakage. However, in jointed rock masses, energy behaves differently. Joints weaken the structural integrity of the rock, providing planes of weakness through which energy can escape. If the existing joints are not accounted for, explosive energy may simply displace in-situ rock blocks along these planes rather than fracture them (See attached Video). Instead of breaking the rock into controlled fragments, the blast may push intact blocks outward, resulting in oversize fragments, back-break, and uneven muck profiles. This inefficiency increases downstream processing costs and reduces overall blast performance. Using WipFrag to Analyze In-Situ Blocks and Joint Orientation Modern photo-analysis tools offer a practical solution for evaluating geological structures before and after blasting. With WipFrag, blasters can take pictures of the bench face to analyze joint orientation and in-situ block conditions. This information is critical for determining the appropriate burden and spacing, especially for the first row of blast holes where rock structure strongly influences burden relief. The WipJoint tool enhances this capability by providing detailed assessments, including: 1. Joint spacing 2. Apparent Joint orientation 3. Rock Quality Designation (RQD) 4. In-situ block size distribution 5. Joint frequency across the face These parameters help blasters understand the structural geology of the bench and design more effective blast patterns tailored to the rock mass. After the blast, blasters can capture images of the muck pile with WipFrag to evaluate how well the fragmentation matches expectations. Comparing pre-blast joint conditions with post-blast fragmentation results allows engineers to refine designs and continuously improve blast performance. Both capabilities are available and fully accessible on WipFrag 4. Download the software here (https://lnkd.in/dAVP7Py9) and create a free account today. Then share your WipFrag username along with a short sentence about what you plan to use the software for, and you could win free demo credits to analyze at least one image at no cost.

Rock Failure and Stress Redistribution in Rock Masses Rock masses exist in a natural state of equilibrium, where in-situ stresses are balanced by the strength and confinement of the rock. Rock failure occurs when this equilibrium is disturbed, causing the stresses within the rock mass to exceed its strength. Such disturbances can result from both natural processes and human activities, particularly in mining, tunneling, and quarrying operations. One common cause of stress disturbance is the creation of a cavity within a rock mass. When material is removed, the original stress field can no longer be maintained, and stresses are redistributed around the opening. This redistribution often leads to stress concentration along the boundaries of the excavation, increasing the likelihood of deformation, cracking, or failure if the rock mass cannot adequately support the new load conditions. Blasting represents a more dynamic and intense source of stress disturbance. Beyond simply removing rock, blasting introduces shock waves, high gas pressures, and ground vibrations that temporarily but significantly alter the stress environment. These stress waves can propagate through the rock mass, activating existing discontinuities such as joints, bedding planes, and faults. The reduction in confinement and the weakening of these structural features can substantially reduce rock mass stability. As stresses are redistributed and confinement is lost, rock faces may experience sliding, spalling, or collapse. In slopes and open excavations, this can manifest as rock falls or planar and wedge failures, particularly where geological structures are unfavorably oriented. The risk of failure is further influenced by rock quality, in-situ stress conditions, blast design, and the proximity of excavations to free faces. Understanding the relationship between stress redistribution and rock failure is critical for safe and efficient rock engineering. Proper excavation sequencing, controlled blasting techniques, and continuous monitoring of rock mass response are essential measures to manage stress-induced instabilities. By accounting for these factors, engineers can minimize the risk of rock failure and maintain the long-term stability of rock structures. The video shared by Bernard Saw as attached to this post clearly demonstrates how excavation activities can trigger rock failure. As material is removed from the rock mass, the natural stress equilibrium is disturbed, forcing stresses to redistribute around the newly created opening. When the rock mass is unable to accommodate these changes, instability develops, resulting in cracking, sliding, and eventual failure of the rock face. The video provides a practical visual example of how excavation-induced stress changes can directly compromise rock mass stability.

Lessons on the Effect of Fractures on Rock Fragmentation Rock fragmentation during blasting is strongly influenced by the interaction between stress waves and geological structures. Weak or less stiff zones, such as joints, bedding planes, or other discontinuities, reflect the incoming shock wave during detonation. This reflected energy increases damage on the opposite side of the discontinuity, often producing coarser fragmentation in those areas. Conversely, stronger and stiffer rock units transmit stress waves more efficiently. Blasting produces three primary damage zones within the rock mass: Crushed Zone This forms immediately around the borehole where the explosive shock wave exceeds the rock’s dynamic compressive strength, pulverizing the rock. Fracture Zone As the stress wave travels outward, the rock yields when the induced tensile stresses surpass the dynamic tensile strength. This creates radial and circumferential fractures extending several hole diameters from the blast hole (Ding et al., 2022). Spalling Zone The spalling zone develops when stress waves encounter a free face. The wave reflects back as a tensile wave, and if this reflected tensile stress exceeds the rock’s tensile strength, slabbing or thin “tile-like” breakage occurs (Zhang, 2016). The size and intensity of these zones depend on explosive type, energy characteristics, and rock mass properties. Influence of Geological Structures and Impedance The impedance mismatch between intact rock and geological structures also significantly affects the transmission and distribution of stress waves. When stress waves pass through materials with different densities or stiffness, their speed and amplitude change. This alters fragmentation patterns, influences damage zone extent, and affects material throw. Numerical and Field Evidence Numerical and field studies by Magreth Dotto Ph.D., P.Eng. and Yashar Pourrahimian provide valuable insight into damage distribution in jointed rock masses under blast loading: Their LS-DYNA numerical model for 51 mm holes shows the crushed zone radius extends 87.71 mm, approximately 1.72 times the borehole radius. Using peak particle velocity (PPV) criteria, the fracture zone extends to 3.02 m, or 59.2 times the hole radius. Field trials confirmed these results, with a crushing radius of 93.09 mm and a fracture radius of 3.1 m. PPV measurements showed a significant drop from 102 m/s near the hole to 2.35 m/s beyond the fracture zone indicating the rapid attenuation of energy after fracturing. Key Takeaway for Blasting Engineers A critical lesson from these findings is that the fracture zone generated around each blast hole must remain within the hole’s burden and spacing. If the induced fracture radius exceeds or become lesser than these design parameters, fragmentation becomes inconsistent and inefficient. Understanding the fracture zone radius is essential for designing burden, spacing, and energy distribution that deliver optimal fragmentation.

Effect of Stemming Length on Blast Fragmentation Stemming length plays a critical role in blast performance and the resulting rock fragmentation. The primary function of stemming is to confine explosive gases within the borehole long enough for the shock wave and gas energy to fully act on the surrounding rock mass. When stemming is optimized, more of the explosive energy is transferred into productive breakage rather than being lost as airblast, flyrock, or excessive vibration. 1. Under-Stemming (Too Short) When the stemming column is shorter than required: a. Loss of confinement leads to early venting of gases. b. Reduced energy utilization causes coarser fragmentation. c. Increased airblast and flyrock due to premature blowout. d. Higher variability in fragmentation, making downstream processes less stable. The lack of confinement prevents the explosive from fully fracturing the burden, often resulting in oversized boulders, uneven muckpiles, and inefficiencies in crushing and hauling. 2. Over-Stemming (Too Long) When the stemming column is longer than necessary: a. Energy is overly confined and may not generate adequate heave. b. Fragmentation becomes finer near the collar but may remain coarse at depth. c. Potential for poor throw and tight muckpiles if explosive energy cannot effectively mobilize the rock. d. Over-stemming can create a blast that breaks the collar region well but leaves deeper zones under-fragmented, affecting shovel diggability and crusher feed consistency. Evaluating Stemming Effect Using WipFrag for Continuous Improvement WipFrag offers a practical and data-driven way to assess how changes in stemming length influence fragmentation outcomes across multiple blasts. Because WipFrag is developed by WipWare, the pioneer in image-based fragmentation analysis and a company dedicated exclusively to this discipline, it remains one of the most reliable and trusted technologies available today. When an organization concentrates its expertise on a specific area, much like a ruler designed for a precise purpose, it naturally excels. WipWare’s long-standing focus on fragmentation analysis exemplifies this principle. How WipFrag Helps: Quantify Fragmentation Differences By analyzing muckpile or truck-loading images before and after stemming adjustments, WipFrag provides: Full particle size distribution, bounder count and trend, %fine for each blast, These metrics show whether fragmentation improved or deteriorated following stemming modifications. WipFrag fits perfectly into a Plan–Do–Check–Act process: Plan: Adjust stemming length based on modelling or previous results Do: Implement the blast design Check: Measure fragmentation with WipFrag Act: Refine stemming parameters based on performance This closes the loop and ensures that stemming design evolves with actual site conditions, geology, and production requirements.

Case Study: Effect of Stemming Length on Blast Fragmentation – Part 2 This part of this article evaluates a granite quarry blast introduced in Part 1 of my post (https://lnkd.in/efKgchFt), which consisted of two sections designed with different stemming lengths. The decision to adjust the stemming length was driven by the need for improved confinement, aiming to reduce excessive energy venting and mitigate poor fragmentation caused by energy loss. The first image illustrates the division of the blast: one section with a 1.8 m stemming length and the other with a 2.0 m stemming length. Each blast hole was drilled on a 2.7 m × 2.3 m pattern, and the stemming material used had a D80 size of 22 mm. Results show that while the 2.0 m stemming zone provided better confinement, it produced coarser fragments due to pre-existing geological fractures. These fracture observations and their influence on fragmentation were discussed in detail in the referenced article available here: https://lnkd.in/e7ytv28B The second application of the adjusted stemming length demonstrated both strong confinement and improved fragmentation. WipFrag was used to analyze each section independently, as shown in the attached images. The yellow pocket is the Quarry crusher compatibility, design on WipFrag for this quarry KPI sizes.

When an explosive detonates in a blasthole, it generates a high-pressure shock wave that radiates outward. This shock wave induces peak compressive strain at the blasthole wall, a critical point that determines how effectively the explosive energy is transmitted into the surrounding rock (Zhang, 2016). If the compressive strain remains below the rock’s crushing threshold, the energy propagates efficiently, initiating controlled radial fractures that extend outward. However, if the peak strain exceeds the rock's strength, a portion of the energy is wasted in pulverizing and crushing the immediate area around the blasthole, forming a damaged zone where fine particles dominate. Beyond the crushed zone, the shock wave transitions into tangential tensile waves, which promote the formation of radial cracks extending toward free faces. The interaction of these waves with pre-existing fractures further influences crack propagation, potentially arresting or redirecting the energy. Optimizing explosive energy to avoid excessive crushing while maximizing controlled fracturing is key to achieving efficient rock fragmentation, improving burden displacement, and minimizing energy loss. Proper blast design, including charge distribution and detonation timing, ensures that energy is used effectively to break the rock rather than dissipate as wasted strain. Reference Zhang, Z. X. (2016). Rock fracture and blasting: theory and applications. Butterworth-Heinemann.

Lessons from a Recent Tragedy in Nigeria Explosives play a critical role in industries such as mining, construction, and demolition, but their storage demands strict compliance with safety standards to prevent catastrophic incidents. Explosives are typically stored in magazines, specially designed and approved facilities that meet stringent safety and security requirements. These include proper ventilation, fire-resistant materials, and adequate isolation from residential or populated areas to mitigate risks associated with accidental ignition or detonation. => The Tragedy in Nigeria (January 26, 2025) A recent explosion in Nigeria underscores the dangers of illegal and improper explosive storage. Preliminary investigations revealed that Yushua Maikampala, a resident of New Bussa in Niger State, had been illegally stockpiling explosives and accessories in a residential house located in Sabo Pegi, Mashegun Local Government Area. According to eyewitness accounts, the explosion occurred at approximately 7:00 AM on a Sunday morning. The blast completely destroyed the building where the explosives were stored and caused significant damage to 20 nearby houses, leaving at least two fatalities and several others injured. Key Lessons and the Need for Safety. This incident highlights the severe consequences of neglecting safety protocols in explosive storage: Risks of Residential Storage: Storing explosives in residential areas exposes nearby communities to the risk of catastrophic explosions, as seen in this tragic event. Triggers for Accidents: Factors like electrical sparks, improper ventilation, and lack of secure containment can lead to unintended detonations. Legal and Regulatory Compliance: Strict adherence to legal regulations on explosive handling and storage is crucial. This includes obtaining the necessary permits, storing explosives in approved magazines, and ensuring regular inspections. => Best Practices for Explosive Storage To prevent such tragedies, the following measures are critical: - Use of Licensed Magazines: Explosives must be stored in certified magazines with controlled access and isolation from residential areas. - Training and Awareness: Personnel handling explosives must be properly trained in storage, handling, and emergency response protocols. - Regular Inspections: Authorities should conduct frequent inspections to identify illegal storage practices and ensure compliance with safety standards. - Community Engagement: Awareness campaigns in vulnerable areas can help educate residents about the dangers of illegal explosive storage and the need to report suspicious activities.

Blasting Misfire: Causes and Effects Blasting is a critical process in mining and construction, designed to break rock efficiently for extraction or site preparation. However, a blasting misfire—a failure of the explosive charge to detonate as planned—can result in significant safety, operational, and economic concerns. Understanding the causes and effects of blasting misfires is essential for minimizing risks and improving overall efficiency. Causes of Blasting Misfire Poor Initiation System: Faulty detonators, damaged shock tubes, or weak electrical connections can disrupt the transfer of energy needed for detonation. Improper Handling and Storage: Mishandling of explosives or storage under unfavorable conditions (e.g., exposure to moisture, heat, or cold) can degrade the explosive's effectiveness. Inadequate Priming: Insufficient primer or incorrect placement within the blast hole can result in partial or failed detonation. Blockages in Blast Holes: Collapsed walls or debris inside the blast hole may prevent proper placement of explosives or primers. Environmental Factors: Wet ground conditions, water ingress in blast holes, or adverse weather can dampen the explosive material and delay or prevent detonation. Operator Error: Errors in charge calculation, delayed timing, or incorrect blast hole spacing can lead to incomplete initiation. Effects of Blasting Misfire Safety Hazards: Misfires pose serious risks to personnel. Undetonated explosives may detonate unexpectedly during follow-up activities, such as excavation or drilling, endangering workers. Operational Delays: Misfires require careful handling and investigation, leading to downtime in mining or construction operations. Clearing a misfire is time-consuming and disrupts workflow. Increased Costs: The costs of addressing misfires include lost productivity, additional labor, re-blasting efforts, and potential damage to equipment. Reduced Efficiency: Misfires can leave unevenly fragmented rock, making subsequent excavation and hauling more difficult and less efficient. Environmental Impact: Misfires may lead to incomplete combustion of explosives, releasing harmful gases into the atmosphere or contaminating water sources in the vicinity. Mitigation Strategies Conduct regular maintenance and checks on blasting equipment and initiation systems. Ensure proper storage and handling of explosives as per manufacturer guidelines. Use waterproof explosives and liners in wet conditions to prevent degradation. Train personnel thoroughly on blasting procedures, error detection, and handling of misfires. Monitor and assess blast designs regularly, incorporating tools like fragmentation analysis software (e.g., WipFrag) to predict and address potential misfire issues. Blasting misfires can have serious repercussions, but with proper planning, adherence to safety protocols, and the use of advanced tools, they can be significantly reduced. A proactive approach not only improves operational efficiency but also ensures the safety of workers and the surrounding environment.

In blasting operations, the effective use of explosive energy is crucial for achieving optimal fragmentation, which directly impacts the productivity of downstream processes (Taiwo et al., 2023). The detonation of explosives generates immense energy that is transferred to the rock mass, initiating a series of fracturing stages that culminate in fragmentation. Let's discuss the Stages of rock Fracturing during Blasting Micro-Fracturing Stage Upon detonation, the explosive generates a shockwave that travels through the rock. This high-energy wave causes localized stress concentrations at the grain boundaries and natural fractures in the rock, resulting in micro-cracks. These micro-fractures weaken the rock structure, setting the stage for further breakage. Radial Fracture Propagation Stage Following the initial micro-fracturing, the expanding shockwave generates radial fractures around the blast hole. These fractures radiate outward as the explosive energy is released, creating larger cracks that separate the rock into sizable fragments. The degree of radial fracturing depends on the rock properties, explosive type, and detonation velocity. Gas Expansion Stage After the shockwave dissipates, the high-pressure gases from the detonation expand into the newly formed fractures. This expansion exerts a sustained force on the rock, further breaking it into smaller fragments. The gas expansion phase is critical in controlling the size of the resulting particles and ensuring uniform fragmentation. Continuous Improvement for Productivity Through Good Fragmentation Good fragmentation reduces the energy and cost required for subsequent crushing and grinding processes (Taiwo, 2022). Continuous improvement in blast designs can help achieve consistent and desirable fragmentation. Let learn SMART blast continuous improvement approach: Monitoring and Analysis: begin with regular assessment of blast results using tools like hashtag#WipFrag to identify areas for improvement. After each blast optimizing Explosive Use if need be: Matching the type and amount of explosives to the rock properties and desired fragmentation size. From the review, adjust Blast Parameters: Refining controllable factors such as burden, spacing, and timing to ensure effective energy distribution. Integrating Advanced Technology: Employing drones, image analysis software, and real-time monitoring systems to collect and analyze blast data for informed decision-making. By focusing on continuous improvement, mining operations can enhance their productivity, reduce operational costs, and achieve safer and more environmentally friendly practices. Through effective use of explosive energy and careful control of the fracturing process, the goal of optimal fragmentation becomes both attainable and sustainable. What is your view about rock property effect on Fragmentation? wipware.com

In the field of mining and rock blasting, optimizing explosive energy distribution plays a critical role in achieving desired fragmentation and operational efficiency. Two innovative techniques, air-spaced charge and air-cavity charge, have emerged as effective strategies for specific blasting outcomes. Air-Spaced Charge The air-spaced charge method involves placing air gaps between explosive charges in a blast hole. This technique reduces the explosive density and ensures controlled energy distribution across the blast zone. By minimizing excessive energy concentration, the method helps achieve optimal fragmentation, reducing the production of oversized boulders and fines. It is particularly effective in cases where uniform particle size distribution is desired, such as in crusher feed material preparation. Air-Cavity Charge On the other hand, air-cavity charges are designed to enhance the heaving effect of blasts. A hollow or cavity, usually created using inert materials or specialized devices, is introduced within the explosive column. This cavity facilitates better energy dissipation, generating higher heave forces and more effective displacement of overburden or waste rock. The technique is widely used in applications where maximizing muck pile looseness and throw is critical for efficient excavation. Read more on this blasting techniques from Melnikov et al. (1977) study: https://lnkd.in/dZkDpWAn Role of WipFrag Software Assessing the results of these blasting techniques is vital for continuous improvement. WipFrag software offers a powerful solution for evaluating blast performance. By analyzing rock fragmentation from blast images, WipFrag provides insights into particle size distribution, allowing users to determine the effectiveness of air-spaced or air-cavity charges. The software's specification envelopes, histogram reporting, and deep-learning features enable precise analysis, helping to adjust blasting parameters for improved outcomes. Additionally, the ability to merge images and compare results from different blast rounds aids in benchmarking and decision-making. By integrating advanced techniques like air-spaced and air-cavity charges with tools such as WipFrag, mining professionals can achieve greater operational efficiency, cost reduction, and enhanced blasting results.

Dilution control during mineral processing is crucial for maximizing the efficiency and profitability of a mining operation. "Dilution" refers to the inclusion of unwanted waste material in the ore feed, which can lower the grade of valuable minerals, increase processing costs, and reduce the quality of the final product. Advantages of Dilution Control in Mineral Processing Enhanced Ore Quality: By minimizing waste material mixed with ore, the overall grade of ore sent to the processing plant is higher, improving the recovery rate of valuable minerals. Reduced Processing Costs: Lower dilution reduces the volume of material needing processing, which directly cuts down on energy, water, and reagent costs. Increased Operational Efficiency: Higher-quality ore flows through crushers, grinders, and conveyors more efficiently, minimizing wear and tear on equipment and reducing downtime. Better Resource Utilization: Focusing on quality ore ensures that resources like fuel, manpower, and machinery are used to extract maximum value, extending the life of the mining operation. Role of Advanced Technology in Dilution Monitoring and Control Technologies like our Solo 6 system provide plant managers with sophisticated tools for monitoring dilution levels and improving material handling processes. The Solo 6 system is designed to capture high-resolution images of material on conveyor belts and analyze them in real-time. Here's how it benefits dilution control: Monitoring Dilution by Material Color Difference: Solo 6 can differentiate materials by color, a key indicator of ore and waste rock types. By setting color-based specifications, it detects and quantifies dilution based on visible differences, which allows plant managers to assess the quality of material feed continuously. Setting Specifications for Consistent Quality: Using Solo 6, plant managers can set predefined quality thresholds, creating alerts when dilution exceeds acceptable levels. This enables quick decision-making to adjust operations, preventing excess waste from entering the crushers and causing production inefficiencies. Real-Time Crusher and Belt Control: Solo 6 integrates with conveyor systems, allowing operators to make adjustments based on real-time data. This proactive approach not only controls the ore-to-waste ratio but also minimizes unnecessary wear on crushers and belts by feeding high-quality material, reducing unplanned maintenance and downtime. Enhanced Material Handling and Optimized Throughput: With continuous monitoring, plant managers can fine-tune material flow rates on conveyors, reducing bottlenecks caused by unwanted material. Real-time image analysis from Solo 6 improves the decision-making process for belt speeds, crusher load adjustments, and waste diversion, leading to a highly efficient and balanced production flow.

Introduction Rock fragmentation is one of the most commonly optimized outcomes in blasting operations due to its significant impact on the efficiency of downstream processes (Eric et al., 2022). Eric et al. noted that properly fragmented rock enhances the productivity of comminution equipment, reduces energy consumption, and improves mineral recovery during ore processing. This article will advise on effective blasting approach, with controlled energy application, increases throughput and reduces overall energy consumption in comminution circuits. Rock Fracturing Mechanism The rock fragmentation mechanism during blasting involves both macro and micro-scale fracturing. At the macro level, the explosive energy generates high-pressure shock waves and gas expansion, which propagate through the rock mass, creating fractures along pre-existing weaknesses. This primary fragmentation results in visible particle size reduction. Micro-scale fracturing, on the other hand, occurs as a result of tensile and shear stresses induced by the explosive force. These stresses generate internal cracks and fissures, which weaken the fragments and facilitate subsequent comminution. The extent of microfracturing depends on factors such as rock type, explosive energy, and delay timing in the blast design. Best Practices for Safety While increasing blasting energy can improve fragmentation and reduce downstream processing costs, it also presents environmental and safety challenges. Best practices to ensure safe and effective blasting include: Pre-Blast Planning: Conduct thorough geological surveys to identify rock properties and potential hazards. Controlled Energy Application: Use precise blast designs, such as appropriate burden and spacing, to minimize over-blasting and flyrock. Monitoring Systems: Employ fragmentation, vibration and noise monitoring systems to ensure compliance with safety regulations. Safety Training: Train personnel on the safe handling of explosives and the mitigation of risks associated with high-energy blasts. Continuous Improvement with WipFrag software To achieve sustainable improvements in rock fragmentation, integrating advanced image analysis tools such as WipFrag is crucial. WipFrag enables real-time assessment of blast fragmentation by analyzing particle size distribution and microfracture patterns. This data can guide adjustments in blast design to achieve optimal fragmentation while maintaining safety standards. In conclusion, effective rock fragmentation requires a balance between optimizing blasting energy and ensuring safety. Leveraging technologies like WipFrag facilitates continuous improvement, enhances operational efficiency, and promotes sustainable practices in mining operations. visit https://lnkd.in/eBPp7e5x Video credits to Paulo Matos

In surface mining, overburden stripping refers to the removal of the material that lies above an ore body or coal seam (Oubah et al., 2024). This overburden composed of soil, rock, and other geological material must be removed to access valuable mineral deposits underneath. The process is integral to mining operations and directly affects their cost and efficiency. The volume of overburden removed compared to the ore extracted is quantified using the stripping ratio. This ratio is a critical economic parameter in mining and is calculated as: Stripping Ratio = Volume of Overburden / Volume of Ore Types of Stripping Ratios Gross Stripping Ratio: The total volume of overburden removed during the mine's life divided by the total volume of ore mined. Incremental Stripping Ratio: The ratio for a specific portion of the mine, often used for short-term planning. Importance of the Stripping Ratio A low stripping ratio is generally more desirable as it indicates that less overburden needs to be removed to access the ore, reducing operational costs. Conversely, a high stripping ratio increases mining costs and requires careful economic evaluation to determine whether the ore body remains profitable to mine. Challenges in Overburden Stripping Environmental Impact: Overburden removal can lead to habitat destruction, increased erosion, and dust generation. Cost Implications: The equipment, fuel, and labor required for stripping constitute a significant portion of the mining budget. Land Reclamation: Post-mining rehabilitation of stripped areas is necessary to mitigate long-term environmental impacts. Conclusion Optimizing the stripping ratio and overburden removal processes is essential for maintaining the economic feasibility of mining projects. Advanced planning, coupled with technologies like photoanalysis and geospatial mapping, can significantly improve the efficiency and environmental sustainability of overburden stripping operations. Blasting waste rock is one of the cost-effective method for removing parent rock in mining. This process involves using controlled explosives to fracture the rock mass, enabling efficient removal of overburden or unmineralized material. It enhances productivity by breaking large volumes of rock quickly, facilitating access to ore deposits while reducing the need for extensive mechanical excavation. Proper blast design minimizes waste and ensures safety.

In mining, efficient blasting is critical to achieving optimal fragmentation that is compatible with the primary crusher inlet (Taiwo et al.,2022). Taiwo et al. (2023) mentioned that oversize in a blast as those fragments larger than the crusher inlet, and “boulders” are rocks larger than the design spacing or burden set in the blast plan. Ideally, a well-designed blast should produce fragments small enough to avoid boulders, with exceptions mainly occurring due to overbreak. When boulders do appear, they often disrupt the flow, leading to additional costs and delays. Major Causes of Boulder Formation in Blasting 1. Insufficient Explosive Energy: If the explosive energy does not propagate well throughout the rock mass, it can lead to incomplete breakage, resulting in larger fragments or boulders. 2. Improper Burden and Spacing: When burden (the distance from the explosive to the nearest free face) and spacing between blast holes are not correctly set for the rock type, boulders are more likely to form, as larger blocks remain unbroken. 3. Rock Geology Variability: Variations in rock structure, including joints, faults, and rock density, can cause irregular breakage, sometimes leaving behind large, hard-to-break boulders. 4. Blasting Techniques and Equipment: Issues such as drill deviations, inconsistent hole loading, or use of inappropriate blasting techniques can lead to poor fragmentation and oversized rocks. How WipFrag Can Assist with Boulder Assessment WipFrag software offers powerful tools to assess blast outcomes, helping to identify and manage boulders effectively: 1. Boulder Counting Tool: WipFrag’s boulder counting tool analyzes the blast results in two ways: First, it identifies the 50 largest fragments, mapping their size and location within the blast area. This overview helps operators spot and address oversized rocks quickly. Second, it assesses fragments based on specific size criteria. By inputting the crusher inlet size, the software can screen blast results to flag any particles exceeding the crusher’s capacity. These oversized fragments are highlighted, and their dimensions are displayed, allowing for informed decisions on handling. 2. DX Tool and Specification Envelope: The DX tool and specification envelope in WipFrag enable users to set fragmentation size goals and monitor compliance with these parameters. By defining a specification envelope, the user can ensure that the majority of the blast output falls within an acceptable range for crusher compatibility. The DX tool allows for further refinement, analyzing the distribution of different fragment sizes, which assists in fine-tuning future blast designs. Manage the blast through continuous assessment, putting safety first at all times.

Blast assessment as mentioned by Taiwo et al. (2023) is a critical process in mining and quarrying operations, providing essential information to optimize production efficiency, safety, and cost-effectiveness. By analyzing blast results, engineers and operators can refine designs and improve outcomes in subsequent blasts. Below are key insights obtained from blast assessments: 1. Fragmentation Analysis One of the primary outcomes of blast assessment is understanding the size distribution of blasted material. WipFrag software allow users to measure particle size distribution (PSD), ensuring the fragmentation is compatible with the crusher gape. Poor fragmentation can lead to inefficiencies in loading, hauling, and crushing operations. 2. Boulder Count and Size Blast assessment identifies oversized boulders, which may require secondary breakage. Counting and analyzing these boulders help evaluate the effectiveness of the blast design and detonation sequence. This can be done on our image analysis software using edit assist tool. For real time analysis on conveyor belt and moving/stationary LHD/trucks our Solo 6 and Reflex 6 is applicable. 3. Blasting Efficiency Efficiency metrics, such as the energy utilization ratio and the percentage of fines generated, are calculated during blast assessments. These insights help in determining whether explosive energy was effectively used to break the material. 4. Specification Envelope Compliance Using WipFrag 4, blast results can be checked against a specification envelope, a predefined range of acceptable particle sizes. This ensures consistency in material quality and compatibility with downstream processes. 5. Cost Analysis Blast assessment provides data to estimate costs related to drilling, explosives, and post-blast handling. By analyzing inefficiencies, operators can adjust blast parameters to reduce overall costs. 6. Environmental Impact Proper blast analysis helps minimize environmental impacts, such as fly rock, noise, and vibrations. By optimizing blast parameters, operators can ensure safer and more environmentally friendly operations. 7. Comparison of Blasts Assessments enable comparisons between blasts in similar conditions, providing insights into how changes in parameters (e.g., hole spacing, charge distribution) affect outcomes. This data-driven approach leads to continuous improvement. Conclusion Blast assessment is not just a tool for evaluating the success of a blast but also a foundation for optimization in mining operations. By leveraging software like WipFrag, operators gain actionable insights into fragmentation, efficiency, and environmental impact, ultimately enhancing overall productivity. You can't manage what you can't measure.

Presplitting is a widely used controlled blasting technique in open-pit mining, aimed at minimizing damage to the remaining rock formation and ensuring greater stability (Pomasoncco-Najarro et al., 2022). By creating a pre-defined fracture line before the main blast, presplitting helps to prevent overbreak and unnecessary rock damage, which is especially crucial when dealing with less competent or weak rock masses.This article explores the fundamentals of presplitting, its significance in mining operations, and design considerations for effective application.Read the full document:

The velocity of detonation (VOD) is an essential parameter for assessing and comparing the performance of explosives in blast holes. Explosives with lower VOD tend to have less impact on rock fragmentation compared to those with higher VOD (Chiappetta, 1988; Heit, 2011). According to Cooper (1996), VOD is commonly used to estimate the detonation pressure and, consequently, the shock energy of an explosive. This detonation pressure is influenced by the explosive's density, VOD, and the ratio of specific heats of the detonation product gases (Eugie, 2017). A reduction in VOD leads to a decrease in both detonation pressure and shock energy (Tete et al., 2013). VOD measurements provide real-time data on the explosive's performance. There are two commonly used VOD measurement techniques: the point-to-point system and the continuous system. Pradhan and Jade (2012) investigated the performance of bulk emulsion explosives in watery blast holes using in-hole VOD measurements, finding poor performance due to reduced VOD and incomplete detonation of the explosive column. Žganec et al. (2016) studied the influence of three different primer types on the VOD of ANFO and ANFO blends using continuous in-situ measurements. They concluded that even with identical emulsion percentages, densities, and borehole diameters, the VOD differed based on primer properties. Mendes et al. (2014) compared emulsion explosives sensitized with hollow glass micro-balloons and hollow polymer micro-balloons, concluding that the type of sensitizer did not significantly affect the detonation behavior. Accurately measuring explosive properties and evaluating fragmentation performance is critical. Often, design adjustments or changes to the explosive may be necessary to meet the energy demands for optimal rock breakage. Case study Eugie (2017) assessed the performance of the HEF100 bulk emulsion explosive through VOD measurements and fragmentation size distribution analysis. VOD was measured in five blast holes using a resistance wire continuous system, and the results were compared to ideal conditions published by the manufacturer (See attached image). The findings showed consistency between steady-state VOD values and the published data. Post-blast fragmentation analysis, using empirical models and image analysis software, revealed that 90% of the fragmented material had a passing size of 700 mm. The lower VOD recorded in blast hole 5 was attributed to reduced confinement caused by burden movement. VOD values provided by manufacturers are typically based on laboratory conditions, but these often differ from field measurements. In conclusion, using image analysis software like WipFrag for post-blast fragmentation assessment, along with VOD measurements (MREL Group of Companies Limited), is crucial to gather sufficient information for informed decision-making.

Question: will the presplit hole Depth be same as the normal production hole Depth and what is the maximum presplit Burden ranges from the last production hole line? The presplit hole depth is typically the same as the normal production hole depth. Both are drilled to the same depth to ensure the presplit creates a controlled crack along the desired plane while the production holes achieve the necessary breakage within the blast. However, the burden for presplit holes is generally much smaller than that of production holes. The maximum presplit burden, which is the distance from the last production hole line to the presplit line, usually ranges from 0.8 to 1.2 times the hole diameter. This smaller burden helps in achieving a controlled break without excessive fragmentation or overbreak into the remaining rock mass. The specific burden depends on factors like rock type, hole diameter, and the desired precision of the break. Question: How about the charging ratio? Is it same as production blast or it is reduced? The charging ratio in presplit blasting is reduced compared to production blasting. Presplit holes are designed to create a smooth, controlled crack or plane in the rock, minimizing damage to the remaining rock mass. Therefore, lighter charges (less explosive per meter of the hole) are used to avoid excessive energy that might cause uncontrolled breakage or over-fragmentation. This can be achieved through any of the following approaches: => 1. Using Smaller Diameter or Lower Density Explosives: Presplit holes are often loaded with explosives of lower density or smaller diameter than production holes. => 2. Using Decoupling Ratio: A higher decoupling ratio (space between the explosive and the hole wall) is usually employed to reduce the explosive energy per unit volume of the hole. This is done using stemming materials or air gaps to minimize the explosive's contact with the rock. using. => 3. Continuous or Deck Loading: Presplit holes may use decked or discontinuous loading (with gaps between explosive charges) to control the energy distribution along the hole.

Three New things to know and to understand about WipFrag 4 Be informed that #WipWare offers advanced software and hardware solutions for the mining and aggregate industries. Their products include WipFrag for particle size analysis, Photoanalysis systems, and fragmentation analysis software. In this article, I will provide a brief information about the latest version of WipFrag software. This article will help both old Users and new users of the software and be a tool to enhancing their relationship with the software. In addition, it will aid the interest of Mining companies, who seek way out from poor blasting and capital inefficient excavation and downstream process. WipFrag 4 is the latest version of Wipware image analysis software with updated technology incorporation. Despite the great accuracy of the previous versions, the need to improve the software performance and reduce analysis error becomes important as mining activities demand. The latest version is know for it's unique Features like Auto scaling, Deep learning Edge detection (DLED), and the Heat map. Auto scaling The need to include magnification/scaling factor in order to bring the real life particle size to image estimation process is vital, and crucial as far as image analysis is concern. Previous versions accept Manual scaling process through the use of known scaling object and direct dragging of scale toggle through the object on the software interface. This process have limitation such as under scaling or over scaling due to human error. WipFrag version 4 eliminate this bottleneck through auto scaling. User perform both scaling and image capturing simultaneously on site. Deep learning Edge detection (DLED) Furthermore, the delineation process involve manual tracing of blast particle edge in previous versions. To improve the software analysis time and avoid human error through particle disintegration, and multiple Fragment Fusion, #WipFrag 4 consider the advantage of Artificial intelligence algorithm (Deep learning adoption). Users of WipFrag can now carry out particle edge detection automatically with less or no editing through the help of DLED Features. Heat Map Finally, Heapmap is a commemorative Features that help Users to access the efficiency of the DLED and also give a quick evaluation of particle size distribution. The practical explanation of How to implement and enjoy this new features had been described in detail on YouTube video. The link to the video is attached below, kindly watch, like, share and comments https://lnkd.in/e6jkYKUk

Understanding the effect of drill hole inclination (vertical or inclined) on blast fragmentation. The inclination of drill holes in blasting operations can have a significant effect on the fragmentation of the rock mass. The choice of hole inclination, whether vertical or inclined, can impact factors such as the size distribution of the blasted rock fragments, the efficiency of the blasting process, and the overall cost and safety of the operation. Here are some key points to consider: Vertical Drill Holes: Vertical drill holes are commonly used in blasting operations. ·        They are drilled straight down into the rock, perpendicular to the surface, therefore support high accuracy unlike inclined holes. ·        Vertical holes can provide good control over the direction of the blast and are often used when precision is required. ·        The blast energy is concentrated in a relatively small area, which can result in a more efficient breakage of the rock as shown in Fig. 1. ·        Vertical holes can create a deeper blast pattern, which may be suitable for certain applications, such as bench blasting in open-pit mines. Inclined Drill Holes: ·        Inclined drill holes are drilled at an angle to the vertical (See attached image) ·        The angle can vary depending on the specific goals of the blasting operation. ·        Inclined holes can help to distribute the explosive energy over a larger area of the rock mass and increase fragmentation volume. ·        This can lead to a broader and more even fragmentation pattern. ·        The use of inclined holes can reduce the need for secondary breakage, as the rock may break into smaller fragments more easily due to the spreading of the blast energy. ·        Inclined holes are often used in controlled blasting techniques, such as pre-splitting, where a narrow, controlled fracture is created before the main blast. In general, the choice between vertical and inclined drill holes should consider factors such as the rock type, the intended fragment size distribution, the geometry of the blasting area, and safety concerns. Inclined holes can be advantageous for creating a better muckpile profile in some cases, especially in open-pit mining where material needs to be efficiently loaded and hauled. Fragmentation is influenced by various other parameters, including the type and amount of explosives, the timing of the blast, the hole spacing and pattern, and the condition of the rock. In summary, the choice between vertical and inclined drill holes in blasting operations depends on the desired fragmentation outcome and the specific requirements of the project.
