Ahmed Afify

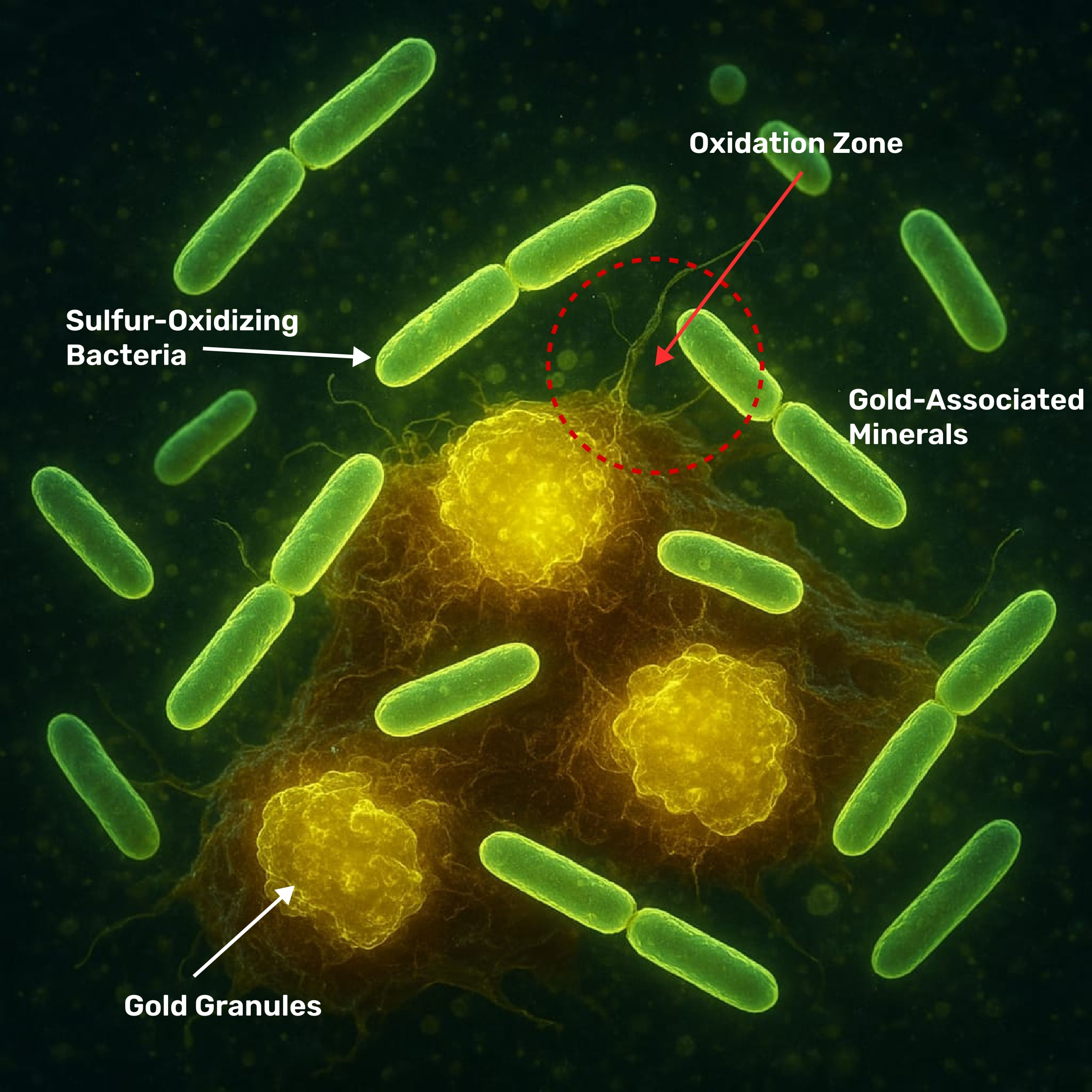

In the gold mining industry, refractory ores rich in sulfides (like pyrite and arsenopyrite) trap gold particles inside sulfur compounds — making traditional extraction methods inefficient. But nature provides a biological breakthrough: Sulfur-oxidizing bacteria, such as Acidithiobacillus ferrooxidans, naturally consume sulfur and break down sulfide minerals — freeing gold for recovery. 💡 How Bio-Oxidation Works: 𝟏. 𝐈𝐬𝐨𝐥𝐚𝐭𝐢𝐨𝐧 Specialized bacteria are cultured under controlled, acidic conditions. 𝟐. 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧 These microbes are introduced to crushed refractory gold ore in bio-reactors or bio-heaps. 𝟑. 𝐌𝐞𝐭𝐚𝐛𝐨𝐥𝐢𝐬𝐦 The bacteria oxidize sulfide minerals (e.g., FeS₂), converting them into sulfate and iron oxides. 𝟒. 𝐑𝐞𝐬𝐮𝐥𝐭 Sulfide shells are destroyed — exposing trapped gold and improving cyanidation efficiency. 𝗔𝗱𝘃𝗮𝗻𝘁𝗮𝗴𝗲𝘀 𝗳𝗼𝗿 𝗚𝗼𝗹𝗱 𝗠𝗶𝗻𝗶𝗻𝗴: 1- Increases gold recovery from refractory ores. 2- Eco-friendly alternative to roasting and pressure oxidation. 3-Lower energy costs and fewer emissions. 4-Ideal for remote mining operations with limited infrastructure. Biotechnology meets gold mining for cleaner, smarter extraction.

Slope stability is a critical consideration in the design, operation, and long-term sustainability of surface mining projects. The mechanical behavior of slopes significantly influences operational safety, mine productivity, and economic performance. The accompanying diagram delineates three principal components in the context of slope stability analysis: 𝟏. 𝐒𝐥𝐨𝐩𝐞 𝐌𝐚𝐬𝐬: The volume of overburden or rock material subject to potential movement due to gravitational and stress-induced forces. 𝟐. 𝐈𝐧𝐭𝐞𝐫𝐟𝐚𝐜𝐞: The potential failure surface, often defined by zones of weakness, discontinuities, or adverse geological structures along which shear displacement may occur. 𝟑. 𝐒𝐥𝐨𝐩𝐞 𝐁𝐚𝐬𝐞: The competent substratum that provides geomechanical support to the overlying slope mass. ✅ From a geotechnical standpoint, failure mechanisms are governed by a combination of factors including material strength parameters (cohesion, internal friction angle), groundwater conditions, slope geometry, and external loads. ✅The mobilization of shear stresses along the interface can lead to translational or rotational failure modes, particularly in heterogeneous or anisotropic materials. 📈 To mitigate the risk of slope failure, contemporary mining practices integrate a multidisciplinary approach encompassing: - Site-specific geotechnical investigations. - Laboratory and in-situ testing (e.g., triaxial, direct shear, borehole logging). - Hydrogeological modeling and pore pressure monitoring. - Numerical simulations (e.g., Limit Equilibrium, Finite Element Analysis). - Real-time monitoring systems (inclinometers, piezometers, radar systems). ➡️ Preventive and remedial measures such as slope reinforcement, dewatering systems, and geometry optimization are implemented based on comprehensive stability assessments. ➡️In conclusion, the integrity of mine slopes is not merely a geotechnical constraint but a central component of responsible mine planning and risk management. ➡️Continuous monitoring, coupled with rigorous analysis, remains essential for ensuring both operational continuity and the safety of personnel and assets.

Did you know gold comes in many forms, each with unique properties and processing challenges? Here’s a quick breakdown of the 8 types of gold ore mentioned in our latest research: 1. High Gold-Quartz Ore: Contains up to 25% gold by mass — a high-value target for extraction! 2. Gold & Silver Ore: Rich in silver sulfide and free gold, often requiring specialized separation techniques. 3. Low-Grade Gold Ore: Holds 0.1 to 1.41 grams per ton — efficient processing is key to profitability. 4. Gold Sulfide Ore (Au₂S): Inorganic and tricky to break down, often needing oxidation methods. 5. Alluvial Gold: Found in blue clay or layered rock — ideal for placer mining. 6. Tellurides: Gold-bearing minerals with tellurium, requiring unique metallurgical approaches. 7. Fine-Grained Gold: Particles <10 μm dispersed in arsenopyrite — ultra-fine grinding may be needed. 8. Granite/Plutonic Rocks: A primary source of gold, often hosting large deposits. 📍Each type demands tailored extraction methods to maximize recovery. Whether you’re in mining, geology, or metallurgy, understanding these varieties can optimize your operations! 💡 Question for you: Which type of gold ore have you worked with, and what challenges did you face? Share your insights below! #GoldMining #MineralProcessing #Geology #MiningIndustry #Metallurgy #ResourceExtraction

What if I told you the future of sustainable mining might be found in something as simple as… fungi? These remarkable organisms are quietly transforming how we recover metals and clean up mining waste—and the science behind it is fascinating. The Challenge: Mining generates billions of tons of waste annually, often contaminated with heavy metals like mercury and arsenic. Traditional cleanup methods are costly, energy-intensive, and can leave behind environmental damage. The Fungal Solution: Nature has its own cleanup crew: • Metal-Eating Fungi: Species like Aspergillus niger naturally produce organic acids that break down minerals, releasing trapped metals in a process called bioleaching. • Plant Allies: Some plants (hyperaccumulators) can extract metals from soil—imagine “farming” nickel or gold! • Cost Efficient: Early studies show bio-recovery can be 30-40% cheaper than conventional methods. Why This Matters: 1. Waste to Wealth: Turns problematic tailings into valuable resources. 2. Lower Carbon Footprint: Uses natural processes instead of harsh chemicals. 3. Circular Economy: Aligns with global sustainability goals by recovering rather than discarding. Food for Thought: “As bio-mining scales up, could it eventually replace smelters for certain metals? What regulatory hurdles might arise?”

𝟭-𝗜𝗻𝘁𝗲𝗿𝗻𝗮𝗹 𝗱𝗶𝗹𝘂𝘁𝗶𝗼𝗻. Sometimes within a mining block there are waste inclusions or low grade pockets of ore that cannot be separated and are inevitably mined with the mining block. This is called internal dilution. Internal dilution is difficult if not impossible to avoid. The amount of internal dilution varies in different types of deposits. Lithology and grade distribution are important factors in internal dilution. 𝟮- 𝗘𝘅𝘁𝗲𝗿𝗻𝗮𝗹 𝗱𝗶𝗹𝘂𝘁𝗶𝗼𝗻 External dilution also called contact dilution refers to the waste outside of the ore body that is mined within the mining block. External dilution varies based on geology, shape of ore body, drilling and blasting techniques, scale of operation and equipment size. This is the type of dilution that can be controlled using proper equipment and mining practices. Figure shows a mining block in a bench of an open pit mine with different types of dilutions.

Sometimes, it is only under immense pressure, in the most extreme environments, that the rarest and most valuable things are formed. This is not just a poetic metaphor — it's the literal truth of how diamonds are born deep within the Earth. 💎 The Birth of a Diamond: A Geological Masterpiece Diamonds aren’t just beautiful — they are among the oldest and most extraordinary materials found on our planet. They form over 150 to 200 kilometers beneath the Earth’s surface, deep within the upper mantle, in zones of ancient stability known as cratons. These regions have existed for billions of years and provide the perfect conditions for diamond formation. To create a diamond, nature requires: Extreme pressure – over 5 GPa, more than 50,000 times the pressure at the Earth's surface. High temperature – exceeding 1,000°C (1,832°F). Pure carbon source – often from subducted organic material or primordial mantle carbon. Under these intense conditions, carbon atoms are arranged into a crystal lattice that forms one of the hardest substances known to science. Some of the diamonds we mine today are over 3 billion years old — predating all complex life on Earth. 🌋 Kimberlite: Nature’s Volcanic Delivery System But forming diamonds isn’t enough. To reach the Earth’s surface, they need a high-speed ride — and that comes in the form of a rare type of volcanic eruption: kimberlite. Kimberlite eruptions are explosive, gas-rich, and extremely rapid. They form vertical structures called kimberlite pipes, which act like geological elevators. Diamonds are carried from the mantle to the surface in a matter of hours, preserving their structure. Without this rapid ascent, diamonds would convert to graphite — the soft form of carbon — due to pressure loss during slower travel. Kimberlite pipes are rare. Out of thousands discovered, less than 1% are economically viable for mining, which makes each diamond deposit a geological treasure. 🛠️ Mining Engineering: Turning Earth’s History into Human Value As mining engineers, we don’t just dig rocks — we uncover the Earth’s secrets, manage complex systems, and bridge the gap between geology and industry. Diamond mining is among the most technically demanding fields in mining due to the value of the resource and the complexity of the deposits. Our role spans several critical phases: Exploration – Using geophysical surveys, geochemistry, and core drilling to locate kimberlite. Feasibility Studies – Evaluating ore grades, overburden, geotechnical stability, and economics. Mine Design & Planning – Developing open-pit or underground operations tailored for selective diamond recovery. Operations & Optimization – Applying technology, automation, and real-time data to enhance safety and efficiency. Sustainability & Closure – Restoring ecosystems and ensuring responsible post-mining land use. Diamond recovery requires extreme precision — even a minor error can damage a stone worth millions. That’s why diamond mining blends geoscience, data, and discipline like few other fields. 🌟 Lessons from Beneath The story of diamonds teaches us more than geology — it teaches us about life, resilience, and hidden strength. Just like diamonds: We are shaped under pressure. We emerge from dark, difficult conditions stronger. Our true value is often hidden deep within. Mining isn’t just a job — it’s a journey into the Earth and, often, a journey into ourselves. “Rough diamonds may sometimes be mistaken for worthless stones.” – Sir Thomas Browne As mining professionals, we know better. We know how to look beneath the surface — in rocks, in systems, and in people — and see potential where others see nothing. That’s what makes this industry not just technical, but deeply human. #MiningEngineering #Geology #DiamondFormation #Kimberlite #EarthScience #UndergroundMining #MineralExploration #EngineeringPerspective #InspirationFromEarth #DiamondsFromTheMantle
